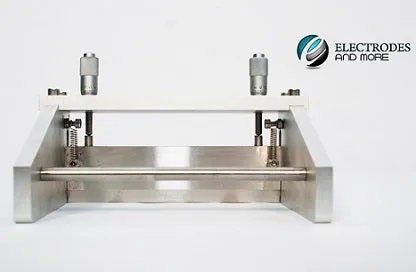

EQ-FC1224-250MM is a compact electrode film coating machine with adjustable micrometer. This unit has adjustable variable speed controller to provide required thickness uniformity and consistent coating.  No vacuum chuck or heater is supplied.  Films have to be dried separately and might take time.  Available in 110/220V configurations.  Please specify the voltage and input plug type while ordering.

 Specifications

• Input votage: 110/220 V
• Single Phase
• Maximum Power: 360 watts
• Speed: 0-100 mm/sec
• Coating length: 10 - 550 mm
• Coating width 250 mm
• Included Doctor-blade: 250 mm
• Weight: 67 Lbs
• Lead time: 4 to 8 weeks
