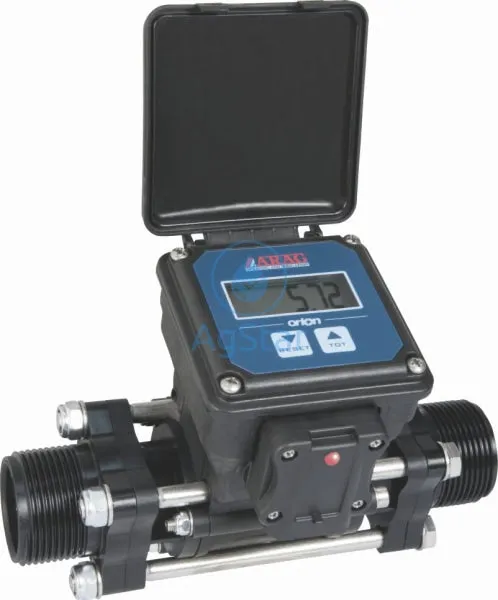

ORION 2 VISUAL FLOW
Electro-magnetic flow meter
Ships with 1.5" Male Camlock Adaptors and 3 metre/10ft Cable
Advantages
• No mechanical moving parts inside the pipe
• Performances independent from fluid density and viscosity
• Low sensitivity to turbulence
• High precision
• Low maintenance
Features
• Instant flow display
• Total delivered (or filled) quantity display
• Set-up quantity to be filled
• Re-set total delivered quantity
• Unit of measure: litres or US Gallons
• Typical error: 0,5% - full scale ±1 digit
• Working pressure: up to 40 bar
• Power supply: 11 to 15 Vdc
• 0-12 Vdc pulse output with frequency proportional to rate
• Max consumption: 300 mA
• Output only by flowing fluid
• Available c/w threaded fittings in fyber glass reinforced Nylon (20 bar) or brass (40 bar)
• Parts in contact with fluid made of polypropylene and Stainless Steel 316
| SKU | 46222A51616 |
| Fitting size | G1 1/2 |
| Flow Rate | 20÷400 l/min |
| Flow Rate | 5÷106 US GPM |
| Max pressure | 20 bar |
| Max Pressure | 290 PSI |
| Pressure Drop | 0,2 bar |
| Pressure Drop | 3 PSI |
| Internal size | 28 mm |
| Pulses/l | 150 pls/l |
| Pulses/gal | 568 pls/Gal |
