Terraplus KT-20 Sensors

THIS LISTING IS FOR SENSORS FOR THE TERRAPLUS KT-20. PRICING DOES NOT INCLUDE THE KT-20 CONSOLE, WHICH IS PURCHASED SEPARATELY.

Sensors

The KT-20 has a range of interchangeable sensors with different shapes and frequencies. Each shape and frequency has its own benefit or application. Users can swap sensors on the KT-20 to adapt the console to different sizes and types of samples, or for different applications.

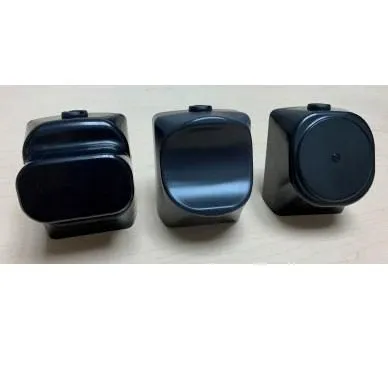

Sensor Shapes:

Circular Sensors are ideal for measuring large, flat samples. A 10 kHz single-frequency sensor features a pin mode for measuring samples with uneven surfaces.
Dimensions: 66 mm diameter.

Rectangular Sensors: Used for measuring small, flat samples or split core. Dimensions: 65 mm x 38 mm

Curved Sensors: Designed to measure drill core samples. Their curved shape allows users to achieve a higher sensitivity for magnetic susceptibility or conductivity, while producing consistent, repeatable measurements. Dedicated curved sensors for BQ, HQ, NQ and PQ sizes.

Individual Frequencies:

1 kHz: For measuring magnetic susceptibility on conductive samples. This frequency reduces the impact of conductivity on magnetic susceptibility measurements. This frequency is not suitable for measuring conductivity.

10 kHz: Ideal frequency for measuring both magnetic susceptibility and conductivity simultaneously. Single-frequency 10 kHz sensors offer highest sensitivity for measuring susceptibility.

100 kHz: Provides the highest sensitivity for conductivity measurements in low ranges. This frequency is not suitable for measuring magnetic susceptibility.

THIS LISTING IS FOR SENSORS FOR THE TERRAPLUS KT-20. PRICING DOES NOT INCLUDE THE KT-20 CONSOLE, WHICH IS PURCHASED SEPARATELY.
